The Low Carbon Fuel Standard has succeeded, but how does it work?

January 22, 2020, by Tani Colbert-Sangree

We are all familiar with emission markets for voluntary carbon offsets or compliance grade greenhouse gas (GHG) credits and allowances. But, there is another less well-known type of environmental market mechanism that is becoming a powerful new regulatory tool. This tool is especially useful for addressing GHG mitigation in the challenging transportation sector. The tool is a Low Carbon Fuel Standard (LCFS).

The State of California has been a leader in using a LCFS as a regulatory tool. The California Air Resource Board’s (CARB) LCFS program targets a 20% reduction in the state’s transportation fuel carbon intensity, by 2030 (compared to the baseline year of 2010). These carbon intensity reductions can result from incorporating alternative fuels such as ethanol, biodiesel, compressed bio-natural gas, and electricity for transportation use throughout the state; as well as improvements to petroleum fuel refineries and Carbon Capture and Sequestration (CCS) technologies. So far, California has successfully achieved a 5% decrease in the carbon intensity of transportation fuel (between 2011 and 2018) with its LCFS program.

Yet an LCFS credit (the commodity traded in the LCFS program), as a regulatory tool, has some unusual measurement, reporting, and verification (MRV) challenges to its generation that distinguish it from other market based instruments (like carbon credits or allowances). These challenges largely exist because LCFS uses life cycle analysis (LCA) to determine the carbon embodied in the complete well-to-wheel (the full life cycle) of petroleum-based fuels and alternative fuels. LCAs can be devilishly complicated to complete in an objective manner (e.g., how to set boundaries and collect data). Not surprisingly, it is an analogously complex task for anyone to rigorously verify a detailed LCA. The Greenhouse Gas Management Institute (GHGMI) has recently been deeply enmeshed in these issues with California’s LCFS program. Specifically, we have been working with our colleagues at the Climate Action Reserve (CAR) and The Climate Registry (TCR) to deliver training, testing and accreditation of LCFS verifiers in support of CARB’s regulatory oversight of the LCFS program. The addition of 3rd party verifiers to this program will provide assurance that a climate mitigation impact has been achieved. This improved and trusted measurement of success within the program will increase the production of low-carbon alternative fuels, investments in emissions reducing refinery technology, and CCS implementation.

What is novel about the LCFS? California’s climate policies like Cap-and-Trade, the Renewable Portfolio Standard, and Vehicle-Related Programs aimed at improving fuel efficiency have reduced California’s emissions, but transportation remains the largest sector of emissions within the state’s GHG inventory and is one of the most difficult sectors to impact. Unlike other sectors, transportation emissions come from millions of sources presenting a more complex regulatory challenge than Cap-and-Trade which targets the 450 largest emitters in the state. But, these policies are not enough to achieve transportation emission reductions against the backdrop of sustained growth in annual vehicle miles travelled. The novelty of an LCFS policy is that it provides policymakers another avenue to reduce transportation emissions. With the addition of LCFS, transportation emissions can be reduced beyond what vehicular improvements can accomplish – by lowering the life cycle carbon intensity of fuel.

But, how does it work?

Within California, CARB sets the target carbon intensity for the average unit of transportation fuel each year. In 2019 this target benchmark was set at 93.23gCO2e per MJ of transportation fuel. All types of fuel are evaluated against this benchmark.[1] The benchmark target then steadily decreases by 1.25% per year until it plateaus in 2030 after achieving a 20% reduction. Within the LCFS program, all fuel-producing entities must achieve the annual benchmark for each unit of fuel produced in that year or suffer non-compliance penalties.

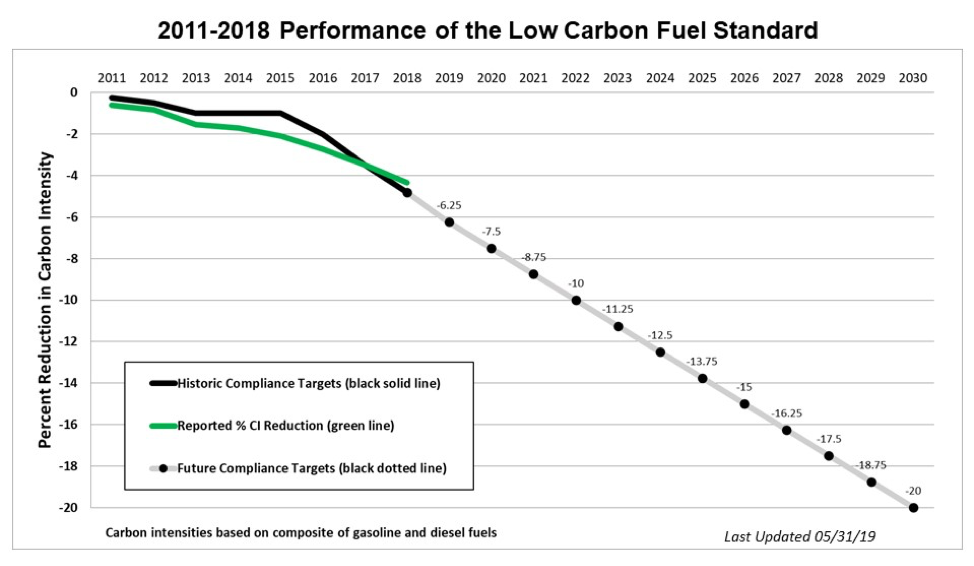

Image 1. shows CARBs annual targets for carbon intensity of the California transportation fuel pool. Note that between 2013-2015 the compliance standard was frozen due to legal challenges.

Walking through the use of this benchmark at the individual producer-level: a producer of gasoline would apply the average LCA carbon intensity for crude oil-derived gasoline production:[2] 101gCO2e per MJ in 2019, to determine their generation of deficits[3] – since the carbon intensity for crude oil-derived gasoline is higher than the benchmark. The fuel producer would generate 7.77 gCO2e (the difference between the 2019 benchmark and the crude oil-derived gasoline carbon intensity) in deficits per MJ of fuel produced. To counter these deficits, the fuel producer would then need to purchase an equivalent number of LCFS credits[4] to bring the carbon intensity down to the benchmark level and into program compliance.

Sellers of these credits are fuel producers whose transportation fuel is less carbon intensive than the CARB benchmark, and thus receive LCFS credits from CARB for the production of low-carbon fuels. CARB oversees this program, ensuring that all deficits are countered by credits, that reporting is accurate, and assesses penalties for non-compliance if necessary.

The incentive created by the California program is huge, with credits trading close to the price ceiling of US$200 per metric tonne of carbon dioxide (mtCO2). For a sense of this policy’s market-shifting incentive, the voluntary carbon offset market transacts tonnes of carbon for less than US$5, and the price for California’s Cap-and-Trade credits are currently hovering around $17/mtCO2. At US$200 per mtCO2 for an LCFS credit, many lower emission fuel sources, production and refinery process improvements, and advances in CCS technology actually make financial sense to develop for credit generation.

The LCFS program is lowering the carbon intensity of transportation in California, but its doing more than just accomplishing this climate mitigating objective:

“According to the National Resources Defense Council, California’s low carbon fuel standard, together with statewide carbon pollution limits, has helped save the state $1.6 billion in health-related impacts from air pollution to date. The state’s program has also increased the clean fuels market by $2.8 billion with the majority of the economic gain taking place in rural communities where feedstocks are grown, and biofuel is produced.” (LCF Coalition Press Release Nov. 21, 2019).

Others governments hoping to achieve similar benefits include British Columbia, the European Union and Oregon, which have each followed California’s lead with their own LCFS programs. In the United States, nine other state legislatures are at various stages of considering LCFS policies, including: Colorado, Illinois, Iowa, Massachusetts, Nebraska, New York, South Dakota, and Washington. As a climate solution, California’s LCFS is proving itself capable of addressing one of the more difficult emissions sources to mitigate while modeling the success of a regulatory tool that is gaining traction around the world.

[1] An average carbon intensity is assessed through CARB’s LCA of crude oil including: extraction, transport, refining, transport to fueling stations, and combustion in transportation vehicles. California defines an average for the crude oil component (California gasoline that you would buy at the pump is 90% from crude oil and 10% ethanol by volume) of California Reformulated Gasoline (CaRFG), due to high variability in crude oil extraction, transportation, and existing refinery carbon intensities. In setting this as the effective baseline, beyond which improvements to oil and gas processes and infrastructure can be gained to generate credits through the LCFS Program, CARB simplifies accounting requirements for the oil and gas sector while also encouraging emission-reducing improvements at all refinery facilities and processes throughout the LCA of crude oil-derived gasoline.

[2] Deficits (and credits) are defined by the CARB LCFS regulation as “the units of measure for determining a regulated entity’s compliance with the average carbon intensity requirements… Credits and deficits are reported in units of metric tons of carbon dioxide equivalent (CO2e)…”. In layman terms, deficits are the compliance obligation that must be reduced and deficits are accumulated by producers of fuel above the benchmark carbon intensity.

[3] Credits only refers to LCFS Program credits. The LCFS Program does not allow for any environmental attributes (such as RECs or carbon offsets) to be used in lieu of LCFS Program credits.

[4] which has intentionally been set to be lower than the predominant existing transportation fuel: crude oil derived gasoline (which is above the 2019 target by 8.6%).

4 responses to “The Low Carbon Fuel Standard has succeeded, but how does it work?”

  1. Farida says:

    is LCFS an asset or a cost? How is it treated according to IRFS standards?

    Thank you.

    • Tani says:

      Hi Farida, LCFS stands for the Low Carbon Fuel Standard which is a type of climate policy. The LCFS credits are the financial instrument within this policy. I am not aware of IRFS standards nor knowledgeable regarding financial reporting requirements, but my guess is that if a company is issued LCFS credits then those would be registered as assets. Companies with the compliance obligation to meet LCFS target levels may purchase credits to reduce their average emissions intensity of a unit of fuel produced. This can be thought of as a cost to companies with the compliance obligation.

  2. Marian Kuper says:

    I’m seriously troubled by something. According to Ron Barmby’s September 20, 2021 guest post on Climate Change Dispatch, science simply doesn’t support the claim that blending ANY amount of ethanol into gasoline reduces CO2 emissions at the tailpipe. The concept that it does so, he writes, is from a carbon dioxide offset theory that, while accepted by the 2015 Paris Agreement, is nevertheless widely known to be erroneous:”The offset theory is that physical CO2 emissions from the burning of ethanol are not counted…because they are offset by the atmospheric CO2 consumption during photosynthesis by the [corn] grown as feedstock for ethanol.” Here’s the problem: this implies that the source plant, corn, has delivered more photosynthesis than would otherwise have occurred on the farmland on which that corn was grown. Well, no, because farmland doesn’t sit idle. It’s growing something; if not corn for ethanol, then corn for animal feed, or soybeans, or oats, or hay. You name it. Photosynthesis is going to occur on cropland regardless of what’s grown on it. And so NOT counting ethanol-based CO2 tailpipe emissions in the calculation of ethanol’s carbon intensity seriously under-estimates ethanol’s actual carbon intensity. In fact, a new study at finds that the carbon intensity of corn ethanol produced under the U.S. Renewable Fuels Standard “is no less than gasoline and likely at least 24% higher.” Right now, here in Iowa, California’s LCFS is a big part of a huge investor-plus-politician push to impose eminent domain upon what could be thousands of owners of Iowa farmland so that ethanol facilities can be retrofitted with CO2 capturing equipment and the CO2 can be transmitted to – among other places – aging oilfields in western North Dakota by means of thousands of miles of hazardous liquefied CO2 pipelines. Iowa farmland owners like myself have asked the well-heeled pipeline companies to promise in writing to not use the captured CO2 for enhanced oil recovery, but of course they won’t do that. Look. If the governments relying upon Low carbon Fuel Standards do NOT revise how ethanol’s carbon intensity is arrived at, climate change mitigation cannot help but be thwarted unnecessarily and at tremendous cost, disruption and risk to hundreds, if not thousands, of Midwest U.S. landowners.

  3. Tani Colbert-Sangree says:

    Hi Marian,

    Thank you so much for sharing your experience with ethanol in Iowa – eminent domain is quite the significant policy move – do you know what exactly they are taking control of? The fields themselves? In terms of carbon capture through the production of ethanol, as far as I know, that should only require physical changes to the ethanol production/refining facilities. In general, I have seen studies that show ethanol has a marginal or negative impact on atmospheric GHG levels compared to gasoline as a transportation fuel and tend to agree with you.

    From a GHG accounting perspective there is just one thing to clarify from your post, which is distinguishing between consequential and attributional accounting approaches. What you describe, “delivered more photosynthesis than would otherwise have occurred on the farmland” would be the case one would make for consequential GHG accounting – your intervention/change caused the atmosphere to be better off than had nothing been done (and therefore the baseline would have continued). But within the LCFS program they do not apply consequential accounting, they use life cycle assessment which is a type of attributional accounting. With attributional accounting you are determining what emissions occur (when and where) but there is no comparison against a baseline – it is simply an attribution of emissions to sources or processes and responsible entities. So in this case for the LCFS program, they are looking at the ethanol fuel and tracing its value-chain to identify all emission sources (this would include tail-pipe combustion emissions, refining, transport, crop production, etc). These emission sources are accounted to build the fuel pathway for specific sources of ethanol (as the emissions can vary based on processes for ethanol production and other factors that can vary). So both the CO2 sequestered through plant growth and the ultimate combustion of the fuel should be accounted for within the LCFS program.

    Here is a blog that looks at this accounting distinction in more detail:

    Also, I tend to agree with you regarding the practice of CO2 capture for enhanced oil recovery (EOR) purposes…seems a little counter productive. But the rationale is that the practice is widely occurring at present and the captured CO2 is replacing other CO2 that would be used instead. There is some important accounting with EOR, to ensure against double counting, that is required within the LCFS program.

    Thanks again for your post.
